COBOL Concepts:
VSAM and SQL Definition and Retrieval
Introduction to Optional Fields
Setting
up Jazz to work with SQL
Configuring
Your COBOL Environment – Micro Focus
Configuring
Your COBOL Environment – z/OS
To use SQL
with Jazz requires Jazz Version 15.2 or later.
At the
COBOL level there are major differences between programs that use VSAM and programs
that use SQL with relational databases like DB2, Oracle, and SQL Server. For example this
program reads VSAM records of customers living in a particular sales
region. However if CustF were a table in
an SQL database then the program would look like
this. Jazz has minimised the
difference: the Jazz program is essentially the same
*# Last Updated by JazzUser at 30/09/2018 2:52:27 p.m.
PROGRAM
PrCustF BATCH DATABASE sample DB2;
COPY
Custf;
COPY
JZSMth;
PROCESS
Custf WHERE CustF.Region <>
5 ORDER(CustF.Account);
PRINT(CustF.Account,CustF.Region,CustF.District,CustF.Name,CustF.SalesThisMonth,
CustF.Billingcycle);
END
PROCESS custf;
The most
obvious difference is the addition of the DATABASE option
on the PROGRAM
statement, but a more important difference is that in the first case we defined
Customer as: -
DEFINE
CustF VSAM DATA(
…);
and in the
other
DEFINE
CustF SQL DATA(
…);
There are some
other differences in the definition: -
Account
PIC '999999' has become Account CHAR (6) as PIC is not
permitted as a DB2 data
format.
Data set information, whether for an alternate
index or the file is removed. Databases
manage such information themselves from the table name. By writing
DATABASE
Sample
we’ve given all the information that the
program requires.
In this case these are the only differences. Differences would be greater if we’d used GROUPs, or dimensions in the VSAM file.
Of course
not all differences can, or should, be hidden.
You will find that with SQL you have some extra options, and occasionally
there are different rules. It is not the place of this document to discuss the
advantages and disadvantages of using a relational database, our purpose here
is merely to introduce these differences to you so that you can write programs
as easily in one situation as the other, and take advantage of SQL’s special
features.
This
chapter will assume that a relational database such as DB2, Oracle, or SQL
Server has been installed and made available to you. We have developed and tested the SQL features using IBM’s DB2 installed locally. Click here
to read what we did to install DB2.
We’ll start
with the differences in definition.
In the VSAM version of program PrCust there is
information about the Customer file in the COBOL program’s INPUT-OUTPUT section
(see lines 000230 to 000280), a record layout is put into the File section
(lines 000490 – 000600).
Before the
program can read any data it executes
003310 OPEN INPUT CustF.
Because the
PROCESS statement includes ORDER, requiring that the data is read in sequence
of ACCOUNT, the program uses an internal sort, reading data from the input,
creating a shortened record of the required fields from the selected input records,
and sorting this into ascending sequence: -
003680
JZ-Main-Program-Logic.
PRCustF
003690* PROCESS Custf WHERE CustF.Region <> 5
ORDER(CustF.Account); PRCustF
003700 SORT SORTWORK PRCustF
003710 ON ASCENDING KEY Account OF
JZ-SORTWORK PRCustF
003720 INPUT PROCEDURE IS
JZ-16-PROCESSGroup-INPUT
PRCustF
003730 OUTPUT PROCEDURE IS
JZ-16-PROCESSGroup-OUTPUT.
PRCustF
When the
program wants to read a record from the Customer file it executes
003780
JZ-16-PROCESSGroup-INPUT1. PRCustF
003790 READ CustF NEXT RECORD AT END MOVE 'Y' TO
CustF-ENDFILE. PRCustF
003800 IF CustF-STATUS IS NOT = '00' AND
CustF-STATUS IS NOT = '10' PRCustF
003810 DISPLAY 'PROGRAM TERMINATED. STATUS
CODE NOT 00 FOR READ PRCustF
003820- 'CustF. Code=' CustF-STATUS PRCustF
003830 MOVE 'Y' TO CustF-ENDFILE PRCustF
003840 END-IF.
PRCustF
003850 IF CustF-ENDFILE = 'N' AND Region OF
JZ-CustF NOT = 5 PRCustF
…
After each
VSAM operation the program will check the VSAM status code to ensure that there
is no error, and to detect situations like end-of-file.
To run
program PrCust the JCL must include a DD statement for Customer and for each
path to its alternate indexes. Jazz
generates the following based on the DSNAME option of the DEFINE statement, and
the path name given as part of Name’s DKEY property
//CUSTOMER DD
DSNAME=IBMUSER.VSAM.CUSTF,DISP=SHR
//CUSTOME1 DD
DSNAME=IBMUSER.VSAM.CUSTF1,DISP=SHR
If our program
included more files there would be similar statements for each VSAM (or
physical-sequential) file used by our program.
You can see similar entries for the Report file, and for the work files
used by the SORT.
In the SQL version of program PrCust the File Control
section has nothing about CustF, there is only an entry for the report file
(unchanged). The record layout has been moved from the Input-Output section to
Working Storage and is now in an external COBOL definition copied into the
program with
001360 EXEC SQL
PRCustF
001370 INCLUDE CustF
PRCustF
001380 END-EXEC. PRCustF
The I/O
statements look very different. First,
with DB2 LUW the OPEN statement is replaced with CONNECT: -
003140 EXEC SQL
PRCustF
003150 CONNECT TO :JZC-DATABASE PRCustF
003160 END-EXEC.
PRCustF
With DB2
ZOS there isn’t even this CONNECT statement: the JCL has already connected to
the database before the program is initiated.
With SQL,
instead of reading a complete record with READ, SQL defines the data that it
wants from the database by declaring and opening a cursor, asking for the
particular fields that it wants from the record.
003480 EXEC SQL PRCustF
003490 DECLARE JZ-18-CURSOR CURSOR FOR SELECT
Account, Region, PRCustF
003500 District, Name, SalesThisMonth,
Billingcycle FROM PRCustF
003510 CustF WHERE Region <> 5
ORDER BY Account PRCustF
003520 END-EXEC.
PRCustF
003530 EXEC SQL
PRCustF
003540 OPEN JZ-18-CURSOR PRCustF
003550 END-EXEC.
PRCustF
Sorting is
simply part of the SQL SELECT statement, so that ORDER
… does not require that Jazz
creates an internal “record” with the required fields and pass it through a
SORT with input and output routines
When a
record is wanted and the VSAM version would have read a sorted record the SQL
program executes
003600 EXEC SQL
PRCustF
003610 FETCH JZ-18-CURSOR INTO
:Cus-Account, PRCustF
003620 :Cus-Region:JZB-Cus-Region, PRCustF
003630
:Cus-District:JZB-Cus-District, PRCustF
003640 :Cus-JZ-Name:JZB-Cus-JZ-Name, PRCustF
003650
:Cus-SalesThisMonth:JZB-Cus-SalesThisMonth, PRCustF
003660
:Cus-Billingcycle:JZB-Cus-Billingcycle PRCustF
003670 END-EXEC. PRCustF
SQL knows a
lot more about the data than VSAM. SQL
not only knows the record name, it knows the names and formats of the fields
within it, and which of these fields are key fields and so can be used for
indexed retrieval. In Jazz we’ll
continue to talk about a “Record” that contains “Fields”, but with a database
more correct terminology would be “Table” and “Columns”. You should understand that the records are
not necessarily stored in the way that they would be with VSAM or a sequential file, with each
field being arranged in order so that there is a record on external storage
that looks like the record defined in COBOL storage as 01 CustF. …
The
COBOL-level differences cause a few minor Jazz-level definition differences.
1.
Definition
Name. With VSAM the definition name (Customer)
cannot be longer than 8 characters. This
is because it’s the name of a file known to zOS: there will be a DD statement
//CUSTOMER DD
DSNAME=IBMUSER.VSAM.CUSTF,DISP=SHR
and the zOS rule is that DD names can’t be
longer than 8 characters.
In contrast an SQL definition
name may be much longer. The rules
depend on the database, but most allow at least 16 characters. HOWEVER the definition must be saved in the
COBOL Copy library where the 8-character restriction again applies, so Jazz
provides the CPYLIBNAME
option to allow you to specify a shorter name.
DEFINE
ArchivedCustomerData SQL CPYLIBNAME $SQ00004 DATA(
This definition will be saved locally (in the
Jazz Copy Library) as ArchivedCustomerData, but in the COBOL Copy Library as
$SQ00004. Jazz will insert this option
automatically, choosing a unique name starting with $SQ, if you do not give a
short name when it is needed.
2.
Fields
in a SQL record must be defined following SQL rules: -
DEFINE
CustRec SQL DATA(
Account CHAR(8),
Name
VARCHAR(30),
Address-Line1 VARCHAR(30),
Address-Line2 VARCHAR(30));
Firstly, each of these field names is known to
SQL. The Jazz SQL definition
may not include extra fields, including redefinitions and GROUPs
Fields may not have a dimension: thus
Address(2) VARCHAR(30) would be invalid.
Formats like PIC that are not
supported by SQL are not permitted. For fields like EMPLOYEE.EMPNO, which is defined to SQL as CHAR(6) but actually has numeric values
(in CHAR form), you can add a PIC property to the Jazz definition,
for example
EMPNO CHAR(6) PIC ‘999999’ REQUIRED KEY,
EMPNO remains
a CHAR field, so you cannot use it in arithmetic. You can however assign a numeric value to it,
which will be assigned as characters in the PIC format, i.e. EMPLOYEE.EMPNO = 90; results in value ‘000090’, and a VALIDATE statement will report errors if its value is not numeric.
3.
Like
a VSAM record, an SQL record may
use properties KEY, DKEY, and UKEY to denote
key fields. This is strongly recommended
as it helps Jazz to develop efficient code, but unlike VSAM it is not
compulsory, and even when there are no key fields defined to Jazz you can write
GET Custrec WHERE
(condition)
Groups can’t be used with SQL to denote compound keys, so instead you use KEY PART n. For example, here both
AccountNbr and LineNbr are needed to uniquely identify the record: -
DEFINE RSQL SQL DATA(
AccountNbr CHAR(12)
KEY,
LineNbr SMALLINT
KEY PART 2,
Line-data …
Similarly,
DKEY and UKEY
may use PART.
4.
Several
Jazz data types are not directly supported by the database. If you use these formats in an SQL definition
then when you export a definition from Jazz to SQL then Jazz will map them to
character fields in the database. The
unsupported data types and their SQL mappings are: -
Jazz format |
SQL Mapping |
PICTURE |
CHAR(length) |
BOOLEAN [DISPLAY] |
CHAR(1). ‘N’ = false, ‘Y’ = true |
SMALLINT BOOLEAN |
SMALLINT. 0 = false, -1 = true |
GUID |
CHAR(36) |
TINYINT |
CHAR(1) * |
BOOLEAN |
CHAR(1) |
MONEY |
DECIMAL * |
* These
types are mapped as shown for DB2 and Oracle, but for SQL Server will have the
same type names as in Jazz
5.
In
Jazz a field may use CODES, RANGE, MAX, MIN, and other properties that imply validation rules. These rules will not be known to SQL. If you use these properties, or one of the
unsupported data types, then the underlying data is not validated outside your
Jazz program, and if data originates externally then you should use ACCEPT statements to ensure that it is valid.
In SQL some
fields may be able to have a value “NULL”, meaning that they have no
value. This is the default rule in SQL:
fields that cannot have a NULL value are defined with the property NOT NULL: -
--DEFINE
CustFS SQL PREFIX Cus DATA(
--Account
CHAR(6) HEADING 'Account Number' KEY,
--Region
LIKE Types.Region KEY PART 3,
--District
DECIMAL(3) RANGE(1:10) KEY PART 2,
--Name
CHAR(40) DKEY,
--SalesThisMonth
MONEY(7,2),
--SalesYTD
MONEY(7,2),
--Billingcycle
LIKE Types.Month,
--DateCommenced
DATE DPIC 'dd mmm yyyy',
--Bool
BOOLEAN);
CREATE TABLE CUSTFs
(Account CHAR(6) NOT NULL,
Region DECIMAL(3) NOT NULL,
District DECIMAL(3) NOT NULL,
Name CHAR(40),
SalesThisMonth DECIMAL(7,2) /*MONEY*/,
SalesYTD DECIMAL(7,2) /*MONEY*/,
Billingcycle CHAR(1) /*TINYINT*/,
DateCommenced DATE,
Bool CHAR(1) /* BOOLEAN:Y/N*/,
PRIMARY KEY(Account,Region,District))
For an example
of why this might be useful, imagine that your Customer file records
NbrChildren. If you don’t know how many
children a customer has you don’t want to set this field to zero, because
knowing that a person has zero children is not the same as not knowing. Yet if you set this to an artificial value,
say -1, then every time you want to do something with NbrChildren then you’ll
have to remember to handle the artificial value with special logic in your
COBOL program to avoid errors such as calculating an average incorrectly.
The
original designers of relational databases implemented a solution to this
problem: for optional fields SQL provides an indicator field. In SQL you can test whether an optional field
is present or not by testing to see if the indicator field has value -1. As for the field itself, it can have any
value (including -1 if its format allows this).
This can be
a useful concept, but it can also be a source of programming error and
confusion. Jazz tries to make things as
simple as it can. All you should need to
do is to define the field with the OPTIONAL
property: -
DEFINE
CustRec SQL DATA(
Account CHAR(8)
REQUIRED,
Name
VARCHAR(30) REQUIRED,
NbrChildren SMALLINT
OPTIONAL,
…
Actually
you don’t need to write OPTIONAL, it’s the default and is assumed if you didn’t
write REQUIRED.
Most of the
time you’ll use NbrChildren like any other field, ignoring the possibility of it being NULL. A built-in function $NULL
can be used for assignments and comparisons when you do need to distinguish
real and NULL values.
Jazz REQUIRED corresponds to NOT NULL in SQL.
OPTIONAL corresponds to NULL (explicitly or default) in
the SQL definition. In a Jazz definition
fields are OPTIONAL by default, unless REQUIRED is written
with the DEFINE
statement
DEFINE
CustRec SQL REQUIRED
DATA(
Account CHAR(8),
Name
VARCHAR(30),
NbrChildren SMALLINT
OPTIONAL,
Optional
fields have a Null indicator and a data value.
SQL doesn’t define what is in the data value if the field is NULL, and
when SELECT reads a VARCHAR field that has less than the maximum length it
does not extend the value. Jazz
generates statements into the COBOL program to ensure that the data value is set
to the default value (normally 0 or blank) when the field is NULL, and that VARCHAR fields do not retain the residue of earlier values when a short value
is returned. This enables the Jazz
programmer to use OPTIONAL fields as if they were REQUIRED in most situations.
If you set
an optional field with an assignment, e.g. Custrec.NbrChildren = value; then: -
Form of Value |
Target (e.g. Custrec.NbrChildren) is set to |
Note |
value is a constant |
Not NULL, data value from the value |
|
Value is a normal field (not OPTIONAL |
As above |
|
Value is an optional field |
Set to NULL or Not NULL from the value |
|
Value is $Null |
Set to NULL, data value set to default |
1 |
Value is an arithmetic expression |
Set to Not NULL, value calculated as normal |
2 |
Value is a string expression |
Set to Not NULL, data value = concatenation of string elements |
3 |
Value is a coded field with a value |
Set to Not NULL, data value set to the code or code value by normal rules |
4 |
Value is a coded field that has not been set |
Set to NULL, data value set to zero or blank |
4 |
Value is an actual code |
Set to Not NULL, and the actual code is used as the data value. This applies even when the actual code is zero or blank. |
|
Notes:
1.
If
there is a VALUE property then this defines the default
value. If VALUE is not
present, then
1. BOOLEAN fields are set to False
2. Other coded fields are set to “Code
Undefined”. The fields code will be zero
or blank, the fields value will be ‘*****’.
3. Numeric fields are set to ZERO,
4. CHAR(n) PIC ‘picture’ fields are set to zero as
characters in the form of ‘picture’.
5. Other CHAR fields and VARCHAR fields are set to SPACE. The
length of VARCHAR fields is set to zero.
2.
If
any of the numeric fields in the expression is NULL, then it will be treated as
zero. This does not make the calculated
value NULL.
3.
If
any of the string fields in the expression is NULL, then it will be treated as
a zero-length character string, i.e. ‘’.
This does not make the concatenated value NULL
4. Here is part of a definition
DEFINE SQLT1 SQL DATA(
C CHAR(2) CODES (AK:Alaska,AL:Alabama),
E CHAR(6) OPTIONAL,
….
Provided that C has been set, perhaps by an assignment like sqlt1.c =
sqlt1.e = sqlt1.c;
sets E to Not Null, and to value Alaska.
However E is set to NULL if the code has not been set or its value is
not found: in these cases the data value will be set to ‘******”.
In normal Jazz programming – anywhere except I/O statements involving SQL - you can use OPTIONAL fields as you would any other fields. If they are NULL, then they will have zero or blank values, and you can write statements like
IF Field1 >= Field2 …
without having to think about whether either or both fields are NULL. When you do want to distinguish between NULL and Not NULL values you can refer to $NULL. With $NULL you can test for = (equal) and <> (Not equal), but not for > or < as $NULL has no value, and therefore has no order.
In SQL I/O statements the rules of SQL are applied, and so in WHERE, ORDER, etc you may need to be aware of the way that SQL handles NULL values. For example: -
PROCESS
SQLTab WHERE (SQLTab.charfield
= SQLT2.charfield) UPDATE
ORDER (SQLTab.CharField, SQLTab.SIFld DESC);
To SQL a NULL field does not have a value at all, so its value can never be equal to, not equal to, greater than or less than any other value. Even another NULL value! So that
SQLT2.Charfield
= $Null;
PROCESS SQLTab WHERE (SQLTab.charfield = SQLT2.charfield) …
returns NO RECORDS. It DOES NOT return all the records from SQLTab with NULL values. If you want these records then you write
PROCESS SQLTab WHERE (SQLTab.charfield = $NULL) …
Records in
an SQL database are processed with the same statements as VSAM: PROCESS, GET, WRITE, UPDATE, and DELETE.
In some cases there are some extra options and a little more
flexibility, but generally there is little difference. PROCESS
and GET will
retrieve only the fields that are referenced in your program: thus if you have
defined a SQL table with fields A, B, C, D, and E, but your program refers only
to A, C, and E, then fields B and D are not retrieved from the database. Within your program the fields B and D will
have their default values, and if you insert a new record with WRITE
or GET
… UPDATE then if
these unused fields are OPTIONAL
they will not be written to the database, while if they are REQUIRED then they will be written with
their default values.
When a PROCESS statement uses VSAM then the WHERE condition may only refer to key
fields, and the conditions must be = or >=.
A SQL PROCESS
is more flexible, allowing you to write WHERE conditions
of any complexity and naming both key and non-key fields. Of course if you abuse this flexibility you
may find your program taking hours to run because you’re reading the entire
database sequentially.
You can use
SQL operators BETWEEN, IN, and LIKE (or ~ meaning LIKE), as comparison operators. Note that this is not actually a difference
with VSAM (and sequential), as MANASYS Jazz allows these operators with other
file types, and in general logic (IF statements
etc).
As with PROCESS, WHERE conditions are more flexible. GET is
intended for situations where you want to read one particular record: like
VSAM, a SQL GET that
is ambiguous returns the first record, and (in CICS programs) provides PF7/8
paging to get the previous and next record.
With SQL you can add an ORDER
option to the GET to
control which record is returned first.
Without this option (and in VSAM) it is not defined which record is
“First”.
As with
VSAM these are usually implicit, with UPDATE
options on PROCESS
or GET statements
causing the record to be updated when the next record is retrieved, or the
program finishes. UPDATE and
DELETE
have two new options with SQL, WHERE and CURRENT. CURRENT is used when the statement follows
a PROCESS
or GET,
causing the record last read to be updated or deleted. WHERE
options allow sets of records to be processed in one operation: this may be
very powerful, but it may also be risky as you can delete or update large
sections of the database.
An “SQL
condition” is a condition that you write in a WHERE clause of an I/O statement for an SQL
table. It is similar to the WHERE condition that you can write for a VSAM file, or a condition that you write
in an IF statement.
As in those cases
1.
you
can use the normal comparison operators =, <>, >, >=, <, and <=,
2.
you
can create compound conditions by combining simpler conditions with & (AND) and | (OR),
3.
you
can use a reference to a BOOLEAN field
without any comparison expression as a shorthand for “Boolean field = True”,
and
4.
you
can use ( ) to group parts of a compound condition, so that a test is evaluated
in the correct order, e.g.
PROCESS … WHERE ((C1 = ‘A’ |
C1 = ‘S’) & Name = ‘John’);
In an SQL
condition there are also some further ways that you can express a
condition. These condition types may
also be available in FOR, IF and ELSEIF conditions, and WHERE clauses for VSAM where the condition is used as a
filter, not as a key expression. See the
notes with each type of special condition.
LIKE
or ~ is
a comparison operator that compares a string value against a string
pattern. For example,
PROCESS SQLtab
WHERE (SQLTab.charfield LIKE
'ABC%');
Here we are
processing all records from SQLTab where the value of SQLTab.charfield
starts with “ABC”. Rules for using a LIKE comparison are: -
1.
The
operator ~ may only be used in an SQL context, such as the WHERE clause of a PROCESS
or other I/O statement accessing a SQL table.
SQLTab.charfield
~ 'ABC%' would not be valid if SQLTab were
not defined with type SQL, or if
this condition were written in an IF statement.
2.
The
field, SQLTab.charfield, must have type CHAR or VARCHAR.
3.
The
value, 'ABC%',
may be a string constant (as here), or be a CHAR or VARCHAR
variable.
4.
The
value should contain at least one occurrence of the wildcard character, %,
meaning “any character string, of any length.
Thus the comparison above means “SQLTab.charfield = 'ABC' followed
by anything”, so the WHERE returns all records in which SQLTab.charfield
starts with 'ABC'.
If you wrote SQLTab.charfield
~ '%ABC'
this would mean “any value
ending with 'ABC,
while SQLTab.charfield
~ '%ABC%' would mean “any value containing 'ABC'.
There are also other wildcard options:
consult your database documentation for the rules that apply. Jazz will check that a character string
constant contains “%” and produce a message if it does not, but if the value is
a variable it leaves any checking to SQL (DB2, Oracle, etc).
IN gives a list of values. For example
PROCESS SQLtab
WHERE (SQLTab.charfield IN
('
This is equivalent to a series of
conditions linked by |, for example: -
PROCESS SQLtab
WHERE (SQLTab.charfield = '
| SQLTab.charfield
=
'
Either PROCESS statement will
return records from SQLTab where Charfield has one of the three values given in
the list. Values may be constants, as
here, or may field.
IN
comparisons are valid
in SQL WHERE conditions
and in normal conditions (IF, ELSEIF statements), but not in WHERE conditions for VSAM unless the WHERE is a filter used in a BATCH program reading all records.
BETWEEN gives a value range. For example
PROCESS SQLtab
WHERE (SQLTab.Balance BETWEEN
1000 AND 10000);
This is equivalent to: -
PROCESS SQLtab
WHERE (SQLTab.
The lower value should be given first: BETWEEN 10000 AND 1000 is always false. As with IN, values may be constants or fields, and you can use NOT to negate the condition. Note that AND is a keyword separating the two values, and is not the same as the boolean operator &.
BETWEEN
comparisons follow the
same rules as IN: they
are valid in SQL WHERE
conditions and in normal conditions (IF, ELSEIF statements), but not in WHERE conditions for VSAM unless the WHERE is a filter used in a BATCH program reading all records.
With LIKE, IN, and BETWEEN you may use NOT to negate the condition.
This PROCESS returns records from countries other than the three in the list:
-
PROCESS SQLtab
WHERE (SQLTab.charfield NOT IN
('
You cannot use NOT with other conditions: NOT = is an error, not an alternative way of writing <>.
Jazz has been developed and tested with DB2 LUW (Linux, Unix, and Windows) and DB2 ZOS. Support for ORACLE and other databases will be developed on demand, or as time/resources permit.
First Jazz must be configured to develop COBOL and submit jobs using SQL. The COBOL environment will also need to be configured to compile and run these jobs.

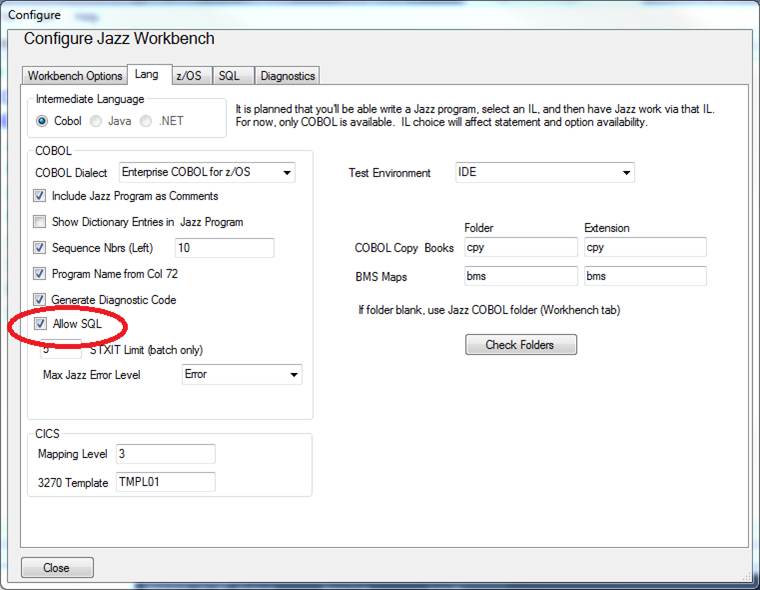

On the language tab you must check Allow SQL: -
Otherwise the DATABASE option (PROGRAM statement) and SQL definitions will cause error #602.

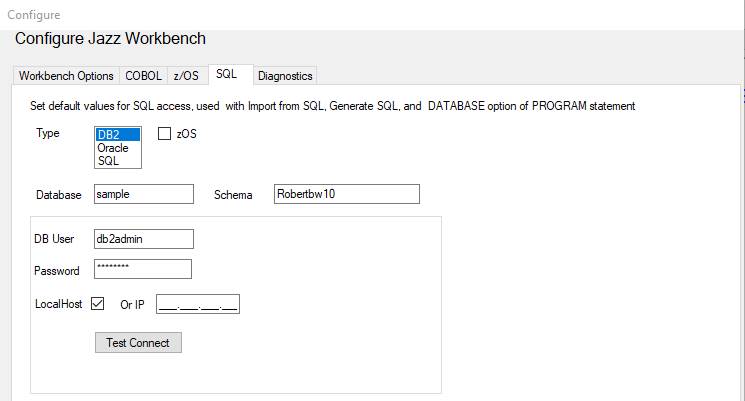

Next you should use the SQL tab to set default values for database access. For DB2 LUW, leave [ ] zOS unchecked:-
1. Choose a database type: DB2, Oracle, or SQL Server.
2. Name the database that you want to access
3. Give the name of the schema within the database that contains your tables.
4. Give a user name and password with access rights to this database. The user should have at least read and update rights to the database, for some activities database admin rights to create and modify tables will also be required.
5. If the database is installed on your own PC check Localhost, otherwise give the IP address of the server that will allow it to be found from your Jazz session.
6. Click [Test Connect]. Jazz will connect to the database, and check that there is at least one table defined within the schema.
For connecting to DB2 ZOS: -
For zOS the important information is in the lower section, SSID, Plan, collection, and DBRMLib. Get these values from your systems programmer. The earlier information, database name and schema, are relatively unimportant, but a database name is required for the PROGRAM statement in your Jazz program, and it has at least some documentation value although in a zOS system databases are really identified by SSID.
Jazz is now configured to process SQL programs and generate COBOL. However for those COBOL programs to be compiled and run you have to configure your COBOL environment to support SQL.
Our own test environment is Micro Focus Enterprise Developer with Visual Studio, and we installed DB2 Community (a free version of DB2 LUW) on to a computer also used for Jazz software development. Click here to learn more.
When a Jazz program is compiled a job is created using JCL created from an appropriate JZL template. Refer to the heading JZL Templates in the Workbench Help page for Configuration to learn about the rules of JZL. There are several templates – Batch compile with SQL, Batch run with SQL, and CICS compile with SQL – that include SQL steps. The templates that are supplied have been proven to work with SQL settings above using an Australian zOS system, but they will need editing for your set up. Check these JZL templates, and correct them as necessary.
